压缩Redis里的字符串大对象操作

背景

Redis缓存的字符串过大时会有问题。不超过10KB最好,最大不能超过1MB。

有几个配置缓存,上千个flink任务调用,每个任务5分钟命中一次,大小在5KB到6MB不等,因此需要压缩。

第一种,使用gzip

/**
 * 使用gzip压缩字符串
 */
public static String compress(String str) {
    if (str == null || str.length() == 0) {
        return str;
    }
    ByteArrayOutputStream out = new ByteArrayOutputStream();
    GZIPOutputStream gzip = null;
    try {
        gzip = new GZIPOutputStream(out);
        gzip.write(str.getBytes());
    } catch (IOException e) {
        e.printStackTrace();
    } finally {
        if (gzip != null) {
            try {
                gzip.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
    return new sun.misc.BASE64Encoder().encode(out.toByteArray());
}

/**
 * 使用gzip解压缩
 */
public static String uncompress(String compressedStr) {
    if (compressedStr == null || compressedStr.length() == 0) {
        return compressedStr;
    }

    ByteArrayOutputStream out = new ByteArrayOutputStream();
    ByteArrayInputStream in = null;
    GZIPInputStream ginzip = null;
    byte[] compressed = null;
    String decompressed = null;
    try {
        compressed = new sun.misc.BASE64Decoder().decodeBuffer(compressedStr);
        in = new ByteArrayInputStream(compressed);
        ginzip = new GZIPInputStream(in);
        byte[] buffer = new byte[1024];
        int offset = -1;
        while ((offset = ginzip.read(buffer)) != -1) {
            out.write(buffer, 0, offset);
        }
        decompressed = out.toString();
    } catch (IOException e) {
        e.printStackTrace();
    } finally {
        if (ginzip != null) {
            try {
                ginzip.close();
            } catch (IOException e) {
            }
        }
        if (in != null) {
            try {
                in.close();
            } catch (IOException e) {
            }
        }
        if (out != null) {
            try {
                out.close();
            } catch (IOException e) {
            }
        }
    }
    return decompressed;
}

第二种,使用Zstd

        <!-- https://mvnrepository.com/artifact/com.github.luben/zstd-jni -->
        <dependency>
            <groupId>com.github.luben</groupId>
            <artifactId>zstd-jni</artifactId>
            <version>1.4.5-6</version>
        </dependency>
public class ConfigCacheUtil {
    private static ZstdDictCompress compressDict;
    private static ZstdDictDecompress decompressDict;
    private static final Integer LEVEL = 5;
    public static void train() throws IOException {
        // 初始化词典对象
        String dictContent = FileUtils.readFileToString(new File("/Users/yangguang/vscode/text/cache.json"),
            StandardCharsets.UTF_8);
        byte[] dictBytes = dictContent.getBytes(StandardCharsets.UTF_8);
        compressDict = new ZstdDictCompress(dictBytes, LEVEL);
        decompressDict = new ZstdDictDecompress(dictBytes);
    }
    public static void main(String[] args) throws IOException {
        String read = FileUtils.readFileToString(new File("/Users/yangguang/vscode/text/cache.json"));
        ConfigCacheUtil.testGzip(read);
        System.out.println("");
        ConfigCacheUtil.test(read.getBytes());
        System.out.println("");
        ConfigCacheUtil.testByTrain(read.getBytes());
    }
    public static void testGzip(String str) {
        logger.info("初始数据: {}", str.length());
        // 压缩数据
        long compressBeginTime = System.currentTimeMillis();
        String compressed = ConfigCacheUtil.compress(str);
        long compressEndTime = System.currentTimeMillis();
        logger.info("压缩耗时: {}", compressEndTime - compressBeginTime);
        logger.info("数据大小: {}", compressed.length());
        // 解压数据
        long decompressBeginTime = System.currentTimeMillis();
        // 第 3 个参数不能小于解压后的字节数组的大小
        String decompressed = ConfigCacheUtil.uncompress(compressed);
        long decompressEndTime = System.currentTimeMillis();
        logger.info("解压耗时: {}", decompressEndTime - decompressBeginTime);
        logger.info("数据大小: {}", decompressed.length());
    }

    public static void test(byte[] bytes) {
        logger.info("初始数据: {}", bytes.length);
        // 压缩数据
        long compressBeginTime = System.currentTimeMillis();
        byte[] compressed = Zstd.compress(bytes);
        long compressEndTime = System.currentTimeMillis();
        logger.info("压缩耗时: {}", compressEndTime - compressBeginTime);
        logger.info("数据大小: {}", compressed.length);
        // 解压数据
        long decompressBeginTime = System.currentTimeMillis();
        // 第 3 个参数不能小于解压后的字节数组的大小
        byte[] decompressed = Zstd.decompress(compressed, 20 * 1024 * 1024 * 8);
        long decompressEndTime = System.currentTimeMillis();
        logger.info("解压耗时: {}", decompressEndTime - decompressBeginTime);
        logger.info("数据大小: {}", decompressed.length);
    }
    public static void testByTrain(byte[] bytes) throws IOException {
        ConfigCacheUtil.train();
        logger.info("初始数据: {}", bytes.length);
        // 压缩数据
        long compressBeginTime = System.currentTimeMillis();
        byte[] compressed = Zstd.compress(bytes, compressDict);
        long compressEndTime = System.currentTimeMillis();
        logger.info("压缩耗时: {}", compressEndTime - compressBeginTime);
        logger.info("数据大小: {}", compressed.length);
        // 解压数据
        long decompressBeginTime = System.currentTimeMillis();
        // 第 3 个参数不能小于解压后的字节数组的大小
        byte[] decompressed = Zstd.decompress(compressed, decompressDict, 20 * 1024 * 1024 * 8);
        long decompressEndTime = System.currentTimeMillis();
        logger.info("解压耗时: {}", decompressEndTime - decompressBeginTime);
        logger.info("数据大小: {}", decompressed.length);
        compressDict.toString();
    }
}

输出

5KB

2020-09-08 22:42:48 INFO ConfigCacheUtil:157 – 初始数据: 5541
2020-09-08 22:42:48 INFO ConfigCacheUtil:163 – 压缩耗时: 2
2020-09-08 22:42:48 INFO ConfigCacheUtil:164 – 数据大小: 1236
2020-09-08 22:42:48 INFO ConfigCacheUtil:171 – 解压耗时: 2
2020-09-08 22:42:48 INFO ConfigCacheUtil:172 – 数据大小: 5541

2020-09-08 22:42:48 INFO ConfigCacheUtil:176 – 初始数据: 5541
2020-09-08 22:42:48 INFO ConfigCacheUtil:182 – 压缩耗时: 523
2020-09-08 22:42:48 INFO ConfigCacheUtil:183 – 数据大小: 972
2020-09-08 22:42:48 INFO ConfigCacheUtil:190 – 解压耗时: 85
2020-09-08 22:42:48 INFO ConfigCacheUtil:191 – 数据大小: 5541

2020-09-08 22:42:48 INFO ConfigCacheUtil:196 – 初始数据: 5541
2020-09-08 22:42:48 INFO ConfigCacheUtil:202 – 压缩耗时: 1
2020-09-08 22:42:48 INFO ConfigCacheUtil:203 – 数据大小: 919
2020-09-08 22:42:48 INFO ConfigCacheUtil:210 – 解压耗时: 22
2020-09-08 22:42:48 INFO ConfigCacheUtil:211 – 数据大小: 5541

6MB

2020-09-08 22:44:06 INFO ConfigCacheUtil:158 – 初始数据: 5719269
2020-09-08 22:44:06 INFO ConfigCacheUtil:164 – 压缩耗时: 129
2020-09-08 22:44:06 INFO ConfigCacheUtil:165 – 数据大小: 330090
2020-09-08 22:44:06 INFO ConfigCacheUtil:172 – 解压耗时: 69
2020-09-08 22:44:06 INFO ConfigCacheUtil:173 – 数据大小: 5719269

2020-09-08 22:44:06 INFO ConfigCacheUtil:177 – 初始数据: 5874139
2020-09-08 22:44:06 INFO ConfigCacheUtil:183 – 压缩耗时: 265
2020-09-08 22:44:06 INFO ConfigCacheUtil:184 – 数据大小: 201722
2020-09-08 22:44:06 INFO ConfigCacheUtil:191 – 解压耗时: 81
2020-09-08 22:44:06 INFO ConfigCacheUtil:192 – 数据大小: 5874139

2020-09-08 22:44:06 INFO ConfigCacheUtil:197 – 初始数据: 5874139
2020-09-08 22:44:06 INFO ConfigCacheUtil:203 – 压缩耗时: 42
2020-09-08 22:44:06 INFO ConfigCacheUtil:204 – 数据大小: 115423
2020-09-08 22:44:07 INFO ConfigCacheUtil:211 – 解压耗时: 49
2020-09-08 22:44:07 INFO ConfigCacheUtil:212 – 数据大小: 5874139

Redis 压缩列表

压缩列表(ziplist)是列表键和哈希键的底层实现之一。当一个列表键只包含少量列表项,并且每个列表项要么就是小整数值,要么就是长度比较短的字符串,Redis就会使用压缩列表来做列表键的底层实现。

下面看一下压缩列表实现的列表键:

列表键里面包含的都是1、3、5、10086这样的小整数值,以及”hello”、”world”这样的短字符串。

再看一下压缩列表实现的哈希键:

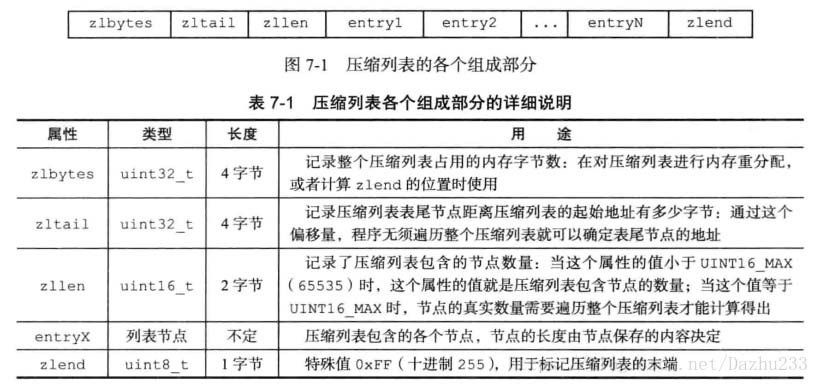

压缩列表是Redis为了节约内存而开发的,是一系列特殊编码的连续内存块组成的顺序型数据结构。

一个压缩列表可以包含任意多个节点,每个节点可以保存一个字节数组或者一个整数值。

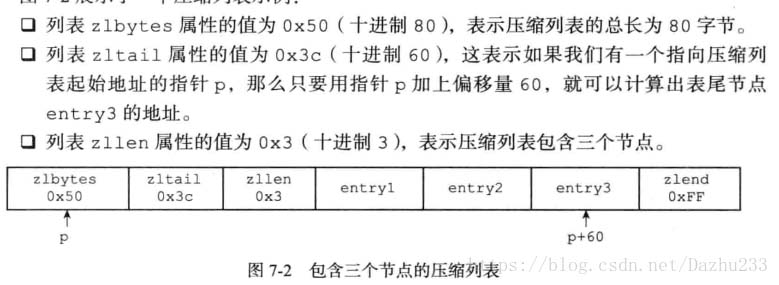

看一下压缩列表的示例:

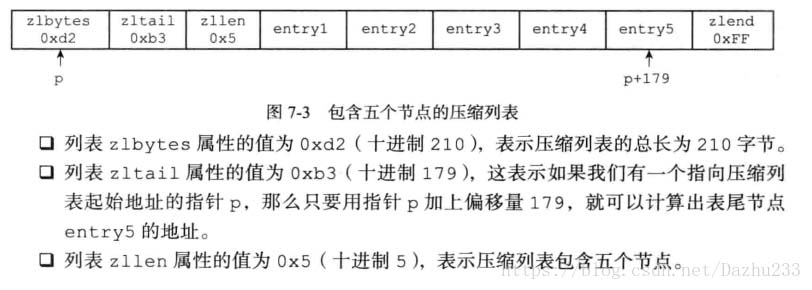

看一下包含五个节点的压缩列表:

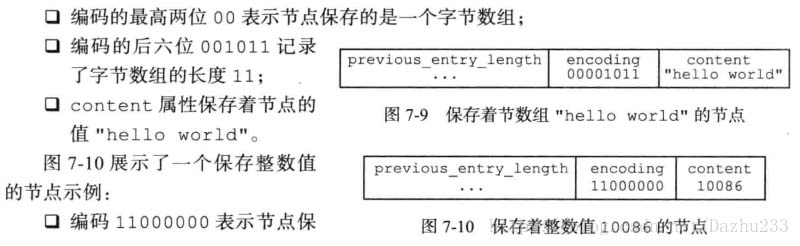

节点的encoding属性记录了节点的content属性所保存数据的类型以及长度。

节点的content属性负责保存节点的值,节点值可以是一个字节数组或者整数,值的类型和长度由节点的encoding属性决定。

连锁更新:

每个节点的previous_entry_length属性都记录了前一个节点的长度,那么当前一个节点的长度从254以下变成254以上时,本节点的存储前一个节点的长度的previous_entry_length就需要从1字节变为5字节。

那么后面的节点的previous_entry_length属性也有可能更新。不过连锁更新的几率并不大。

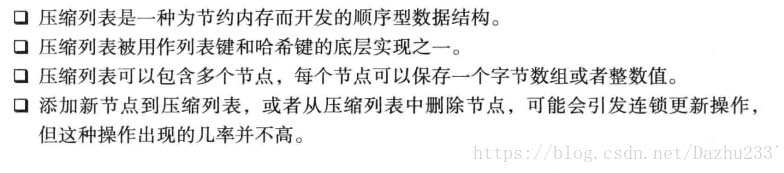

总结:

以上为个人经验,希望能给大家一个参考,也希望大家多多支持。
