Mysql 实现向上递归查找父节点并返回树结构的示例代码

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

— —————————-

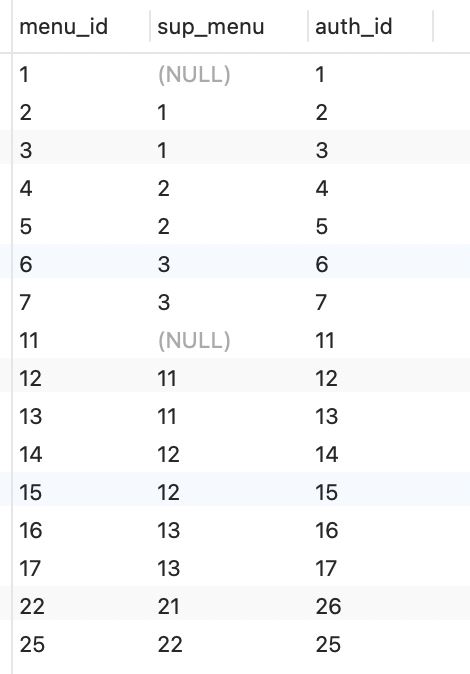

— Table structure for Menu
— —————————-
DROP TABLE IF EXISTS `Menu`;
CREATE TABLE `Menu` (
`menu_id` varchar(255) COLLATE utf8mb4_bin NOT NULL DEFAULT ‘0’,
`sup_menu` varchar(255) COLLATE utf8mb4_bin DEFAULT NULL,
`auth_id` varchar(255) COLLATE utf8mb4_bin DEFAULT NULL,
PRIMARY KEY (`menu_id`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_bin;

— —————————-
— Records of Menu
— —————————-
BEGIN;
INSERT INTO `Menu` VALUES (‘1’, NULL, ‘1’);
INSERT INTO `Menu` VALUES (’11’, NULL, ’11’);
INSERT INTO `Menu` VALUES (’12’, ’11’, ’12’);
INSERT INTO `Menu` VALUES (’13’, ’11’, ’13’);
INSERT INTO `Menu` VALUES (’14’, ’12’, ’14’);
INSERT INTO `Menu` VALUES (’15’, ’12’, ’15’);
INSERT INTO `Menu` VALUES (’16’, ’13’, ’16’);
INSERT INTO `Menu` VALUES (’17’, ’13’, ’17’);
INSERT INTO `Menu` VALUES (‘2’, ‘1’, ‘2’);
INSERT INTO `Menu` VALUES (’22’, ’21’, ’26’);
INSERT INTO `Menu` VALUES (’25’, ’22’, ’25’);
INSERT INTO `Menu` VALUES (‘3’, ‘1’, ‘3’);
INSERT INTO `Menu` VALUES (‘4’, ‘2’, ‘4’);
INSERT INTO `Menu` VALUES (‘5’, ‘2’, ‘5’);
INSERT INTO `Menu` VALUES (‘6’, ‘3’, ‘6’);
INSERT INTO `Menu` VALUES (‘7’, ‘3’, ‘7’);
COMMIT;

SET FOREIGN_KEY_CHECKS = 1;

— 纯存储过程实现
DELIMITER //
— 如果只有叶子，剔除掉; 如果只有根，只显示一个秃顶的根 ；如果既有叶子又有根则显示
DROP PROCEDURE if EXISTS query_menu_by_authid;
CREATE PROCEDURE query_menu_by_authid(IN roleIds varchar(1000))

BEGIN
— 用于判断是否结束循环
declare done int default 0;
— 用于存储结果集
declare menuid bigint;
declare temp_menu_ids VARCHAR(3000);
declare temp_sup_menus VARCHAR(3000);
declare return_menu_ids VARCHAR(3000);

— 定义游标
declare idCur cursor for select menu_id from Menu where FIND_IN_SET(auth_id,roleIds) ;
— 定义 设置循环结束标识done值怎么改变 的逻辑
declare continue handler for not FOUND set done = 1;

open idCur ;
FETCH idCur INTO menuid;
— 临时变量存储menu_id集合
SET temp_menu_ids = ”;
— 返回存储menu_id集合
SET return_menu_ids = ”;

WHILE done<> 1 DO
— 只查找 单个 auth_id 相关的menu_id
— 通过authid, 查找出menu_id, sup_menu is null

SELECT
GROUP_CONCAT(T2._menu_id) as t_menu_id,
GROUP_CONCAT(T2._sup_menu) as t_sup_menu
into temp_menu_ids,temp_sup_menus
FROM
(
SELECT
— 保存当前节点。（从叶节点往根节点找，@r 保存当前到哪个位置了）。@r 初始为要找的节点。
— _menu_id 当前节点
DISTINCT @r as _menu_id,
(
SELECT
CASE
WHEN sup_menu IS NULL THEN @r:= ‘NULL’
ELSE @r:= sup_menu
END
FROM Menu
WHERE _menu_id = Menu.menu_id
) AS _sup_menu,
— 保存当前的Level
@l := @l + 1 AS level
FROM
( SELECT @r := menuid, @l := 0
) vars, Menu AS temp
— 如果该节点没有父节点，则会被置为0
WHERE @r <> 0
ORDER BY @l DESC
) T2
INNER JOIN Menu T1
ON T2._menu_id = T1.menu_id
ORDER BY T2.level DESC ;

— 满足必须要有根节点NULL字符，则表明有根，否则不拼接给返回值
IF FIND_IN_SET(‘NULL’,temp_sup_menus) > 0 THEN
SET return_menu_ids = CONCAT(temp_menu_ids,’,’,return_menu_ids);
END IF;

FETCH idCur INTO menuid;
END WHILE;
CLOSE idCur;

— 返回指定menu_id 的数据集合
select Menu.menu_id,Menu.sup_menu,Menu.auth_id
FROM Menu
WHERE FIND_IN_SET(menu_id,return_menu_ids)
ORDER BY Menu.menu_id*1 ASC ;

END;
//
DELIMITER;

CALL query_menu_by_authid(‘5,15,25,26’);
CALL query_menu_by_authid(‘5,17’);
CALL query_menu_by_authid(‘5,11’);

— 函数+存储过程实现
— 根据叶子节点查找所有父节点及其本身节点。如果只有叶子，剔除掉; 如果只有根，只显示一个秃顶的根 ；如果既有叶子又有根则显示.
DROP FUNCTION IF EXISTS `getParentList`;
CREATE FUNCTION `getParentList`(in_menu_id varchar(255))
RETURNS varchar(3000)
BEGIN
DECLARE sTemp VARCHAR(3000);
DECLARE sTempPar VARCHAR(3000);
SET sTemp = ”;
SET sTempPar = in_menu_id;

— 循环递归
WHILE sTempPar is not null DO
— 判断是否是第一个，不加的话第一个会为空
IF sTemp != ” THEN
SET sTemp = concat(sTemp,’,’,sTempPar);
ELSE
SET sTemp = sTempPar;
END IF;
SET sTemp = concat(sTemp,’,’,sTempPar);
SELECT group_concat(sup_menu)
INTO sTempPar
FROM Menu
where sup_menu<>menu_id
and FIND_IN_SET(menu_id,sTempPar) > 0;
END WHILE;
RETURN sTemp;
END;

DELIMITER //
— 如果只有叶子，剔除掉; 如果只有根，只显示一个秃顶的根 ；如果既有叶子又有根则显示
DROP PROCEDURE if EXISTS select_menu_by_authids ;
CREATE PROCEDURE select_menu_by_authids(IN roleIds varchar(3000))

BEGIN
— 用于判断是否结束循环
declare done int default 0;
— 用于存储结果集
declare menuid varchar(255);
declare set_menu_ids VARCHAR(3000);
— 检查是否单叶子节点 单叶子节点 sup_menu is not null
— sup_menu 是否为null
declare _sup_menu int default -1;

— 定义游标
declare idCur cursor for select menu_id from Menu where FIND_IN_SET(auth_id,roleIds) ;
— 定义 设置循环结束标识done值怎么改变 的逻辑
declare continue handler for not FOUND set done = 1;

OPEN idCur ;
FETCH idCur INTO menuid;
— 临时变量存储menu_id集合
SET set_menu_ids = ”;

WHILE done<> 1 DO
SELECT sup_menu
INTO _sup_menu
FROM Menu
WHERE FIND_IN_SET(menu_id,getParentList(menuid))
ORDER BY sup_menu ASC
LIMIT 1;

— 查找指定角色对应的menu_id ，sup_menu is null 则说明有根，则进行拼接
IF _sup_menu is NULL THEN
SELECT CONCAT(set_menu_ids, GROUP_CONCAT(menu_id),’,’) INTO set_menu_ids
FROM Menu
where FIND_IN_SET(menu_id,getParentList(menuid)) ;
END IF;

FETCH idCur INTO menuid;
END WHILE;
CLOSE idCur;

— 返回指定menu_id 的数据集合
SELECT Menu.menu_id,Menu.sup_menu,Menu.auth_id
FROM Menu
WHERE FIND_IN_SET(menu_id,set_menu_ids)
ORDER BY Menu.menu_id*1 ASC ;

END ;
//
DELIMITER ;

CALL select_menu_by_authids(‘5,15,25,26’);
CALL select_menu_by_authids(‘5,17’);
CALL select_menu_by_authids(‘5,11’);

— 根据叶子节点查找所有父节点及其本身节点。如果只有叶子，剔除掉; 如果只有根，只显示一个秃顶的根 ；如果既有叶子又有根则显示.
DROP FUNCTION IF EXISTS `getParentLists`;
— 参数1角色id 字符串逗号隔开； 参数2 角色id 个数
CREATE FUNCTION `getParentLists`(in_roleIds varchar(1000),count_roleIds INT)
RETURNS VARCHAR(3000)
BEGIN
— 临时存放通过单个角色查找的单个menu_id
DECLARE sMenu_id_by_roleId VARCHAR(1000);
— 临时存放通过单个角色查找的多个menu_id
DECLARE sMenu_ids_by_roleId VARCHAR(1000);
— 临时存放通过多个角色查找的多个menu_id
DECLARE sMenu_ids_by_roleIds VARCHAR(1000);
— 函数返回的menu_id 集合
DECLARE sReturn_menu_ids VARCHAR(3000);
— 当前角色
DECLARE current_roleId_rows INT DEFAULT 0;

SET sMenu_id_by_roleId = ”;
SET sMenu_ids_by_roleIds = ”;
SET sReturn_menu_ids = ”;

— 循环多角色
WHILE current_roleId_rows < count_roleIds DO

— 依次按角色取1条menu_id
SELECT menu_id
INTO sMenu_id_by_roleId
FROM Menu
WHERE FIND_IN_SET(auth_id, in_roleIds)
ORDER BY menu_id DESC
LIMIT current_roleId_rows, 1 ;

SET sMenu_ids_by_roleId = sMenu_id_by_roleId;
WHILE sMenu_ids_by_roleId IS NOT NULL DO

— 判断是否是第一个，不加的话第一个会为空
IF sMenu_ids_by_roleIds != ” THEN
SET sMenu_ids_by_roleIds = CONCAT(sMenu_ids_by_roleIds,’,’,sMenu_ids_by_roleId);
ELSE
SET sMenu_ids_by_roleIds = sMenu_ids_by_roleId;
END IF;

— 通过角色id 拼接 所有的父节点，重点拼接根节点，根节点置为字符NULL，用于后面判断是否有根
SELECT
GROUP_CONCAT(
CASE
WHEN sup_menu IS NULL THEN ‘NULL’
ELSE sup_menu
END
)
INTO sMenu_ids_by_roleId
FROM Menu
WHERE FIND_IN_SET(menu_id,sMenu_ids_by_roleId) > 0;

END WHILE;
SET current_roleId_rows=current_roleId_rows+1;

— 满足必须要有根节点NULL字符，则表明有根，否则不拼接给返回值
IF FIND_IN_SET(‘NULL’,sMenu_ids_by_roleIds) > 0 THEN
SET sReturn_menu_ids = CONCAT(sReturn_menu_ids,’,’,sMenu_ids_by_roleIds);
END IF;

— 清空通过单个角色查到的多个menu_id, 避免重复拼接
SET sMenu_ids_by_roleIds = ”;
END WHILE;

RETURN sReturn_menu_ids;
END;

SELECT Menu.menu_id,Menu.sup_menu,Menu.auth_id
FROM Menu
WHERE FIND_IN_SET(menu_id, getParentLists(‘15,25,5,26’,4))
ORDER BY Menu.menu_id+0 ASC;

SELECT Menu.menu_id,Menu.sup_menu,Menu.auth_id
FROM Menu
WHERE FIND_IN_SET(menu_id, getParentLists(‘17,5’,2))
ORDER BY Menu.menu_id*1 ASC;

SELECT Menu.menu_id,Menu.sup_menu,Menu.auth_id
FROM Menu
WHERE FIND_IN_SET(menu_id, getParentLists(‘11,5’,2))
ORDER BY Menu.menu_id*2 ASC;
